Upgrade Oracle Applications from 11i to R12

Upgrade Oracle Applications from 11.5.10.2 to R12

Version 11.5.10.2
Oracle Applications Vision Instance
OS: Redhat Linux update 5
Type: Single Node instance
Applications OS User: applmgrupd
Installed directory: /d01/oracle/singlenode
Database 9i OS User : oracleupd
9i Database Home = /d01/oracle/singlenode/testdb/9.2.0
10g Database Home = /d01/oracle/singlenode/testdb/10.2.0
Instance SID: TEST
Host: linux1

Task – To Upgrade Oracle Applications 11.5.10.2 to R12



Upgrade path

• Applications R11.5.6 and below requires to first upgrade to R11.5.10.2/10gR2

• Applications R11.5.7 and up can be directly upgraded to R12

• Database in all releases must have been upgraded to 10gR2 (11.5.9.2 / 11.5.10.2) or should be done during upgrade to R12 (11.5.9.1/11.5.10.1 and below


Here are steps to upgrade Oracle Application 11.5.10.2 to R12, let’s split the activity into 6 steps

1> Please do upgrade the database from 9.2.0.6 to 10.2.0.3,

2> Apply the below patches in your existing 11.5.10.2 environment

Shut down the entire E-Business Suite environment and perform a full backup
4712852 - Minipack 11i.AD.I.4
5753359 - ALPPNR, NO RESPONSE ACTION PROCESSOR CONC PGM ENDS IN ERROR
5467526 - OATM MIGRATION UTILITY: ORA-22853 IN ERROR LOG
5120936 - TUMS for R12: TO DELIVER TUMS UTILITY FOR UPGRADES FROM 11I TO R12
5726010 - AD Preparation Scripts for R12

4712852 - Minipack 11i.AD.I.4
5753359 - ALPPNR, NO RESPONSE ACTION PROCESSOR CONC PGM ENDS IN ERROR
*5467526 - OATM MIGRATION UTILITY: ORA-22853 IN ERROR LOG
5120936 - TUMS for R12: TO DELIVER TUMS UTILITY FOR UPGRADES FROM 11I TO R12

sqlplus apps/apps @adtums.sql /usr/tmp

-- Review TUMS report in /usr/tmp

5726010 - AD Preparation Scripts for R12

Enable the maintenance mode

-- Apply patch 5726010
unzip p5726010_11i_GENERIC.zip

cd 5726010/

sqlplus apps/apps @adgncons.sql apps apps
# modify the adcrtbsp.sql to specify the path for new tablespaces

sqlplus system/manager @adcrtbsp.sql

su - oracleupd

mkdir -p $ORACLE_HOME/appsutil/admin
cd $ORACLE_HOME/appsutil/admin
cp /software/upgrades/11.5.10.2toR12/r12/5726010/adgrants.sql .

sqlplus '/ as sysdba' @adgrants.sql applsys

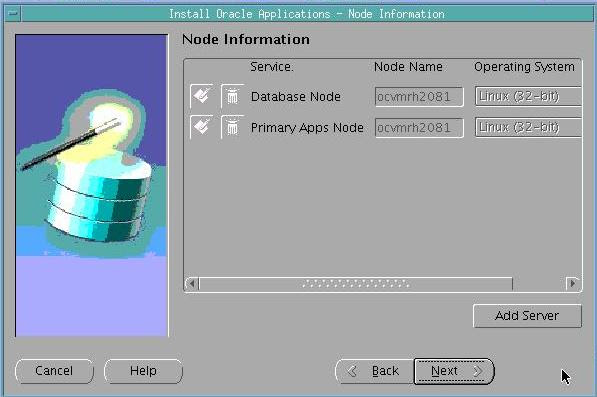

3> Run rapidwiz to create R12 code tree

The installation will install R12 applications components and the database home
Select upgrade to Oracle Applications R12
Select upgrade actions screen
select create upgrade file system

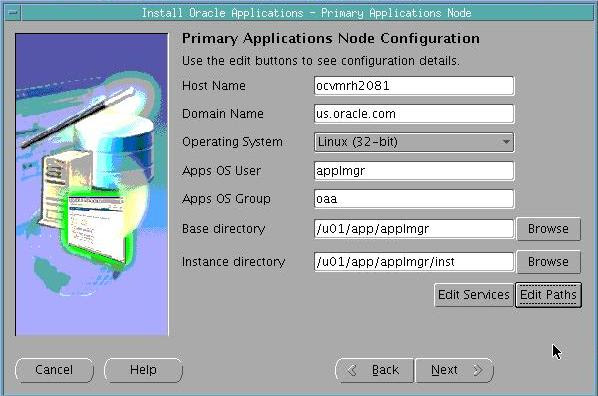

enter the parameters required to set up your new environment run rapid install Here are the screen shot




























The Installation creates APPL_TOP, COMMON_TOP, INST_TOP and 10g Oracle Home
Move the new environment file into .bash_profile

su - applmgrupd
cd /d01/oracle/apps/apps_st/appl
mv .bash_profile .bash_profile_11.5.10
cat APPSVIS_linux1.env >> /home/applmgrupd/.bash_profile

4> Apply the below patches in R12 environment

4502962 – R12 Minipack

Now onwards, you are connected to R12 application
-- Apply patch AD.A 4502962


-- Apply patch 4440000
Run the NLS upgrade patch driver (conditional)
• Download the NLS Release 12 patch (4440000) for each active language in the system.
• Run each driver (u4440000.drv) with adpatch
• NLS patch driver has the same name as the American English patch driver.

Synchronize NLS and American English product patches (conditional)
• Generate manifest using perl $AD_TOP/bin/adgennls.pl
• Backup manifest file $APPL_TOP/admin/$TWO_TASK/out/adgennls.txt
• http://updates.oracle.com/TransSync
• Don’t check Translation Level Updates
• Upload manifest
• Download and apply patch

-- Configuration Phase
Disable maintenance mode
Run autoconfig

Run rapidwiz to configure and start processes
Sign on to R12 applications check concurrent managers

Run autoconfig
su - applmgrupd
perl $AD_TOP/bin/admkappsutil.pl
su - oracleupd
cd $ORACLE_HOME
cp /d01/oracle/inst/apps/TEST_linux1/admin/out/appsutil.zip .
unzip -o appsutil.zip
cd $ORACLE_HOME/appsutil/scripts/TEST_linux1
sh adautocfg.sh


5> Configuration Phase – R12

Run rapidwiz to configure and start processes
-----------------------------------------
rapidwiz - Upgrade to Oracle Applications Release 12 -> Upgrade Action -> Select Configure Upgraded

Release 12 instance
$INST_TOP/admin/VIS_linux1.xml
/d01/oracle/inst/apps/TEST_linux1/appl/admin/TEST_linux1.xml
























Sign on to R12 applications check concurrent managers





Connect as sysadmin/sysadmin




6> Apply the online help

cd $AU_TOP/patch/115/driver/

Please enter the name of your AutoPatch driver file : u5051400.drv

Gather schema statistics for CBO

Release 12 employs cost-based optimization, which examines FND table statistics to determine the most efficient access paths and join methods for executing SQL statements. These statistics are gathered by the FND_STATS process, which you initiate by running the
Gather Schema Statistics concurrent program.

From your Release 11i APPL_TOP, complete the following steps:
1. Log in to Oracle Applications with the System Administrator responsibility.
2. Navigate to the Submit Request window (Request > Run).
3. Submit the Gather Statistics program. (Schema)

Upgrading Oracle Application 11i to E-Business Suite R12

Overview of upgrade to R12
Upgrading an application from 11i to R12 involves, upgrading the database side, upgrading the middleware techstack and upgrading the application side.
Supported upgrade path for application side upgrade is as given below.
[/url]
In case of database upgrade, you have to upgrade the database to 10gR2 (10.2.0). Because application R12 can be used only with 10g database.
Upgrade Process
All upgrade functionality has been consolidated into a single unified upgrade driver that performs the upgrade without reliance on the information formerly captured on the AutoUpgrade screens.
Rapid Install provides the most up-to-date, certified version of Oracle Applications products, along with the certified technology stack components. In an upgrade, it creates the new file system for the application (middle) tier components and the new file system for the database. After the upgrade, you run Rapid Install again to configure servers and start services.
An upgrade also includes various manual steps, including those that direct you to run scripts or apply patches. You rely on AutoPatch to apply all patches, including the unified driver that performs the upgrade to Release 12.
Upgrade Steps in brief
Here are the 4 simple steps, briefly presented below for upgrade. These steps are at very high level of abstraction. We will detailed each steps as we move on further.
1) Understand installed components, system sizing information, NLS considerations
2) Prepare for upgrade using Upgrade Manual Script(TUMS).
3) Upgrading to R12. This includes upgrading the database and applying the required patches through AutoPatch.
4) Post-Upgrade process. Complete the upgrade process by applying the latest RUP patches to keep the system most current.
We wont be considering the functional upgrade task here.
Upgrade steps in detail
1) Understanding installed components
Technology Stack Components
Rapid Install automatically installs and configures the required technology stack components for both the database tier and the application tier.
The database tier technology stack for both a new installation and for a system upgrade is based on Oracle10g Release 2.
The technology stack installed on the application tier includes, among other components:
- Oracle 10g Application Server (AS) 10.1.2
- Oracle 10g Application Server (AS) 10.1.3
- Oracle Developer 10g (includes Oracle Forms)
- Java (J2SE) native plug-in 1.5.0_08
- Java Developer Kit (JDK) 5.0
Memory Requirements
To calculate the memory requirements for an upgrade, consider the following:
- Number of concurrent users
- Infrastructure requirements for multi-tiered architecture
For example:
A test upgrade of the largest Oracle production system (oraprod) used the following:
- Database tier machine – 48 GB of memory
- Application tier machine – 12 GB of memory
A test upgrade of the Vision database and application tier machine used 6 GB of memory.
Database Size
To estimate the increase in required disk space for upgrading, consider the products, the number of languages being installed, and changes in the data model.
For example:
In a test upgrade of the largest Oracle production system (oraprod), the database increased 10-20 percent. In a test upgrade, the Vision database increased 5 percent. For guidelines based on an upgrade of the Oracle production system (oraprod), see E-Business Suite Release 12 Upgrade Sizing and Best Practices (Doc ID: 399362.1).
Database Backup
*** We strongly recommend that you back up your entire system before you begin the upgrade. ***
Database Initialization Parameters
Initialization parameters required at each stage of the upgrade may vary depending on when you upgrade your database. Review the requirements for these parameters before you begin. Refer to metalink note ID 396009.1 for initialization parameters.
Change the following initialization parameters as specified below for upgrade process. Once the upgrade process completes, reset the parameters back.

• db_file_multiblock_read_count – Remove this parameter. (this is not required).
• _db_file_optimizer_read_count = 8 (default setting is 8. Keep default setting).
• job_queue_processes (set the value of this parameters equal to number of CPUs).
• parallel_max_servers (set the value of this parameters equal to twice the number of CPUs).
• pga_aggregate_target (refer to metalink note ID 396009.1 for recommended value).

Make sure that the temporary tablespace you have is locally managed and not dictionary managed. You can check this information using below query.
select CONTENTS,EXTENT_MANAGEMENT,ALLOCATION_TYPE from dba_tablespaces where tablespace_name=’TEMP’;

CONTENTS EXTENT_MANAGEMENT ALLOCATION_TYPE
———— —————– —————
TEMPORARY LOCAL UNIFORM
Else if the extent management is not local, you can drop and recreate temp tablespace using the below command.
NLS Upgrade Considerations
For NLS considerations, please refer to Applications upgrade docs.
Character Sets
You have to be careful while selecting the character set for APPL_TOP. Depending on whether your Applications system connects to the database during the upgrade process, you may be able to select a new character set for the Release 12 APPL_TOP on the Rapid Install wizard upgrade screens. However, if you do, the new set must be either identical to, or compatible with, the existing database character set. If you change the character set in the APPL_TOP to one that is not compatible with the current database character set, the upgraded system will be corrupted.
SQL> create TEMPORARY tablespace TEMP tempfile ’ts_p_temp1.dbf’ size 2048M EXTENT MANAGEMENT LOCAL UNIFORM SIZE 1M;
2) Prepare for upgrade using Upgrade Manual Script(TUMS) and upgrading database

• R12 upgrade process involve replacing 11i Tech stack (9iAS & 806) to Fusion Middleware (10g Application Server)
• Basic upgrade process involves Rapid Install & Autopatch
• Rapid Install involves installing new R12 tech stack as mentioned in first point
• Auto patch process involves upgrading E-Business Suite database compatible to R12 (Data Model)
• Final upgrade process is of updating data model using enhanced version of AutoPatch
• Minimum version from which you can upgrade to R12 is 11.5.7 and higher
• Minimum database version from which you can upgrade to R12 is 9i

As per Oracle R12 Upgrade Documentation, Apps 11i Instance is classified in Two Categories based on Apps & DB Version
Category 1 – 11.5.7, 11.5.8, 11.5.9 (CU1), 11.5.10 (CU1)
Category 2 – 11.5.9 (CU2), 11.5.10 (CU2) or 11.5.10.2
Why we cannot upgrade database to 10.2.0.2 before for category 1 ?
This is because there is no Interoperability patch for above release & 10.2.0.2 was supported for 11.5.9 (CU2) & 11.5.10(CU2) only.
What are advantages of Upgrading database to 10.2.0.2 before R12 upgrade ?
Downtime can be broken down to two small downtimes (one for Database upgrade another one for R12 upgrade) and can be achieved during weekends or long weekends (depending on your system & resources)
The following table lists the paths available for each of the E-Business Suite 11i releases supported for an upgrade to R12
[/url]
PATH A:

• Plan Upgrade to R12
  • Follow the standard R12 upgrade path as documented in the Oracle Applications Upgrade Guide: Release 11i to Release 12. Perform all requirements documented in Chapter 1 and all applicable steps in Chapter 2.
• Install the R12 Technology Stack and 10.2.0.2 Oracle home
• Upgrade the Database to 10.2.0.3
• Apply Database Patches
• Apply the database patches as per the metalink note ID 403339.1. (6319846 for Linux)
• Apply Oracle Service patch 5880762 (conditional)
• Complete the R12 upgrade
• Perform the remaining steps in Chapter 3 and all applicable steps in Chapter 4 to complete the upgrade to R12.

PATH B:

• Plan Upgrade to R12
• Apply Database Patches
• Apply the database patches as per the metalink note ID 403339.1. (6319846 for Linux)
• Apply Oracle Service patch 5880762 (conditional)
• Complete the R12 upgrade

PATH C:

• Plan Upgrade to R12
• Upgrade Database to 10.2.0
• Continue with the R12 Upgrade or Use the 11i/10.2.0 System
• Apply Database Patches
• Apply the database patches as per the metalink note ID 403339.1. (6319846 for Linux)
• Apply Oracle Service patch 5880762 (conditional)
• Complete the R12 upgrade

In our case, we are following path C. We were having 11.5.10 + CU2 application with 9i database. We will upgraded the database to 10GR2.
Then we will apply the database patches as per metalink note ID 403339.1 followed by service pack and then will upgrade the application to R12.
Now preparing the application system is till main step # 2 which includes upgrading the database as well. From main step 3, upgrade process for R12 starts. You may wish to stop after carring out the upgrade for database, run your business for some time (may be few months) and then go for R12 upgrade. This gives a comparatively less downtime for your existing application as you dont have to do all at the same time and can be done in steps.
The Upgrade Manual Script (TUMS) examines your current configuration and creates a report that lists upgrade tasks that do not apply to your system. This report contains information that is unique to your system configuration, so its output is relevant to your individual upgrade. Omitting the steps listed in the TUMS report can significantly reduce upgrade downtime.You create the TUMS report by applying a Release 11i patch, which loads objects into your APPS schema that TUMS uses to examine your Applications configuration. Your current Applications environment is not affected.
Below are the list of steps I am mentioning, which are the required steps. I am skipping the conditional steps here, just to make it brief. You can as well check the oracle documentation for the complete steps.
Step 1) Apply latest AD patch level. The latest AD patch is 11i.AD.I.6 and checkin number is 6502082.
SQL> select patch_level from fnd_product_installations
2 where patch_level like ‘%AD%’;
PATCH_LEVEL
——————————
11i.AD.I.6
Step 2) Run TUMS utility
- Download and apply TUMS patch (5120936). This will supply you one script “adtums.sql”, which you can run to generate the report.
- To generate the report
cd $AD_TOP/patch/115/sql
sqlplus / @adtums.sql
< DIRECTORY> is where the report file will get generated. You need to create directory in database using create directory command. Also the directory path you are mentioning here should exists in UTL_FILE_DIR.
SQL> create directory APPS_DIR as ‘/usr/tmp’;
Directory created.
[applmgr@ocvmrh2081 sql]$ sqlplus apps/apps @adtums.sql APPS_DIR
step 3) Convert to Multiple Organizations architecture

Step 4) Review sizes of old and new tablespaces

Step 5) Run AD preparation scripts
Download patch 5726010. This will provide 3 scripts adgncons.sql, adgrants_nt.sql, adgrants.sql. Script adgrants_nt.sql is not for Linux and so can be ignored.
- First run the script adgncons.sql. This will create script adcrtbsp.sql. This script (adcrtbsp.sql) creates the new tablespaces, allocates unlimited tablespace to all APPS users, updates fnd_product_installation table with correct data and index tablespace information, assigns default tablespace to all APPS users, and sets the new_ts_mode flag in fnd_product_groups to Y.
[applmgr@ocvmrh2081 5726010]$ sqlplus apps/apps @adgncons.sql apps apps
Run adcrtbsp.sql with system user ID and password from database side
[applmgr@ocvmrh2081 5726010]$ sqlplus system/manager @adcrtbsp.sql
- adgrants.sql will grants SYS privileges needed by Applications, and creates required views in SYS.
You need to run this command “as sysdba”. This will prompt you for FND_ORACLE_USERID owner. You need to enter “applsys” when it prompts.
Step 6) Gather schema statistics for CBO
You can do this by Submitting “Gather Schema Statistics” concurrent request for “ALL” schemas.
Step 7) Backup Database
Take the backup of database before we go further with upgrade process
Step 8 ) Upgrading the database from 9i to 10g. You can refer to upgrade database in Oracle applications 11i post to have detailed steps. The database version should be 10.2.0.2
Step 9) Prepare the application for upgrade. You need to run the rapid wizard in upgrade mode. This will create the required file system, install the required techstack components. Below are the screen flow for the same.
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
[/url]
After running this wizard, you will find that your existing application is intact and also a new file system has been created for you.
All your services should be up and running. Your 11i application should be intact. You might face an issue, that services (specially Apache) wont come up and your URL wont open. In this case you can check if the services get started from “inst” directory that got created after you run the wizard.
You can go to location /u01/app/applmgr/inst/apps//admin/scripts and run adstpall.sh script from that location. If the services were started from this location, then it will be stopped. Then you can start the services back from $COMMON_TOP/admin/script/ location.
Also during running of the wizard configuration information will be written to following files. you can check at your prompt and it will list the configuration files.
Configuration file written to: /u01/app/oracle/db/tech_st/10.2.0/appsutil/conf_PROD.txt
Configuration file written to: /u01/app/applmgr/apps/apps_st/appl/admin/ocvmrh2081/conf_PROD.txt
Configuration file written to: /u01/app/applmgr/inst/apps/PROD_ocvmrh2081/conf_PROD.txt
3) Upgrade Process
Below are the steps for upgrade process from 11.5.10.CU2 to 12.0.0. Till now we have just prepared the application for upgrade. Creating the neccessary filesystem layout and database upgrade was part of preparing for upgrade.
Step 1) Shut down application tier listeners and concurrent managers
Step 2) Back up the database – Once again take a backup. I am not crazy asking backup so many times, but in case we face any issue and if we dont have latest stable backup, we will be helpless.
Step 3) Ensure that Maintenance Mode is enabled – Put your application in maintenance mode
Step 4) Apply Release 12 AD minipack (4502962)
For applying this patch, you need to go in R12 APPL_TOP directory and source the env file present in that APPL_TOP. This is becasue you will be applying this patch to your new APPL_TOP and not 11i APPL_TOP. So make sure to source env file present in new APPL_TOP.
Step 5) Run the American English upgrade patch driver (u4440000.drv)
For applying this patch also, you need to go in R12 APPL_TOP directory and source the env file present in that APPL_TOP.
Step 6) Run the NLS upgrade patch driver (conditional)
For other product related steps and NLS synchronization, please check the Oracle Upgrade docs for 11i to R12.
Step 7) Disable Maintenance Mode
Once these step are carried out last step is finishing the upgrade process. Follow the below steps.
1) generate appsutil.zip on appmgr side and copy the same to new ORACLE_HOME. The new ORACLE_HOME directory structure will be created as /u01/app/oracle/db/tech_st/10.2.0
2) unzip appsutil.zip in new ORACLE_HOME
3) run autoconfig in new ORACLE_HOME
Once these steps are done, run rapid install again by provding the config file which was generated before. The file location as we noted down before is /u01/app/applmgr/apps/apps_st/appl/admin/ocvmrh2081/conf_PROD.txt
After these steps are performed, the application system will be configured and ready for use. This completes the upgrade activity from 11i to R12.
References:
Metalink Note ID : 394692.1
Metalink Note ID : 403339.1
Metalink Note ID : 396009.1
Metalink Note ID : 329476.1
Metalink Note ID : 215527.1
Courtesy: Post written by advait
